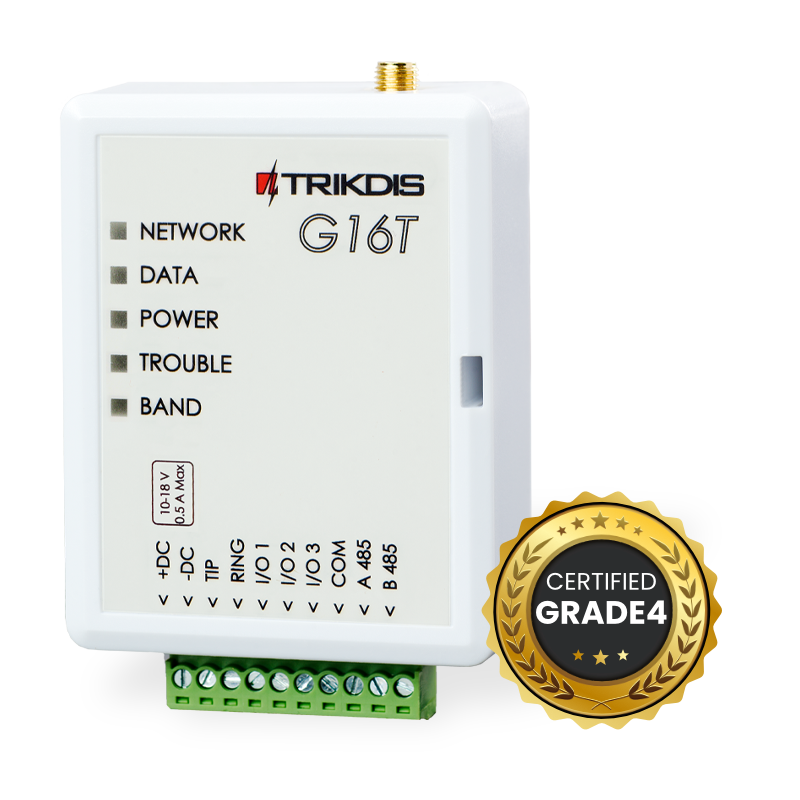

The G16T is a universal cellular communicator designed to upgrade any security control panel with a landline dialer. By simulating a PSTN phone line, it captures event data via TIP/RING and transmits it over high-speed 4G LTE. It is the ultimate “plug-and-play” bridge to bring legacy systems into the modern era with professional CMS reporting and the Protegus 2 app.
Connects to the landline dialer of ANY alarm panel. It simulates a phone line and captures Contact ID or SIA codes without needing deep panel programming.
Provides users with real-time "Push" notifications, system status, and remote control. Modernize the user experience for old systems without replacing the hardware.
Reliable event delivery via 4G LTE with 2G fallback. Features 30-second supervised polling to ensure the connection to the CMS is always active.
Allows remote control even on legacy panels. Uses a PGM output to trigger a keyswitch zone or DTMF simulation to Arm/Disarm the system via the app.
Compatible with all control panels that feature a PSTN communicator (Contact ID or SIA formats).
Converts legacy landline reporting to encrypted IP reporting.
No need to change the existing panel settings in most cases – simply redirect the dialer to the G16T.
Captures detailed events: specific zones, user IDs, and technical faults.
Primary transmission via 4G LTE (Cat-1) for maximum speed and longevity.
Reporting protocols: TRK (TRIKDIS), SIA DC-09 (2007/2012), and SUR-GARD (TL150).
Parallel reporting: sends events to the CMS and Protegus 2 app simultaneously.
SMS and Call notifications as backup or for direct user alerts.
2 selectable I/O terminals that can be used as inputs or programmable outputs (OC type).
Remote control of 1 area (Arm/Disarm/Stay) via keyswitch simulation.
Control of auxiliary equipment like gates, barriers, or lighting through the Protegus 2 app.
Real-time monitoring of power supply and network signal strength.
Fast setup via USB Mini-B or full remote configuration via TrikdisConfig and Protegus 2.
Two access levels for secure management: CMS Administrator and Installer.
Remote firmware updates to ensure compatibility with evolving network standards.
Internal event buffer to prevent data loss during temporary cellular outages.
| Parameter | Description |
| Connects to panel | Landline dialer (TIP RING contacts) |
| Dual purpose terminals [IN/OUT] | 2, can be set as either NC; NO; NC/EOL; NO/EOL; NC/DEOL; NO/DEOL (10 kΩ) type inputs or open collector (OC) type outputs with current up to 0,15 A, 30 VDC max.
Expandable with iO series expanders |
| Output | 1, OC type, up to 0,15 A, 30 V max
Expandable with iO series expanders |
| LTE FDD | B1/B2/B3/B4/B5/B8/B12/B13B18/B19/B20/B25/B28 |
| LTE TDD | B39 (only Cat M1) |
| Cat M1/Cat NB1 | B1/B2/B3/B4/B5/B8/B12/B13B18/B19/B20/B25/B28 |
| GSM | 850 / 900 / 1800 /1900MHz |
| Power supply voltage | 10-18 V DC |
| Current consumption | 60-100 mA (on standby)
Up to 250 mA (while sending data) |
| Transmission protocols | TRK, DC-09_2007, DC-09_2012, TL150 |
| Message encryption | AES 128 |
| Changing settings | With TrikdisConfig computer program remotely or locally via USB Mini-B port
Remotely with SMS messages |
| Operating environment | Temperature from -10 °C to 50 °C, relative humidity – up to 80% at +20 °C |
| Communicator dimensions | 92 x 65 x 26 mm |
| Weight | 80 g |
